BEST-I SJ (CROSS HEMMING MACHINE)
This model can work both for bath towels & face towels. And the hem width can be adjusted between 15-20mm.
Very compact and high efficient model with max.production capacity 50doz/h.
The Comb device is also available for special garments or for a precise pattern matching.
BEST-I VS (CROSS HEMMING MACHINE)
The highest cost-peformance ratio model of our products. It wors both for face towels and bath towels with adjustable hem width function.
The maximum production cycle time is 6-sec/pce.
BEST-IV 1025 (CROSS HEMMING MACHINE)
The renewed model of our best-selling model for bath towels. Hem width can be adjusted between 10 and 25mm.
This model can meet almost all bath towel specifications required in the market.
BEST-V (1000)@(CROSS HEMMING MACHINE)
The big model for regular and large bath towels with treatable max.towel width of 1000mm and adjustable hem width between 10 and 25mm.
BEST-V Twin (CROSS HEMMING MACHINE)
The latest model with two functional choice of one lane operation (for regular & large bath towels or face towels) or two lanes operation(*1)(for regular bath towels or face towels). This model covers various sizes of towels.
*1:Two lanes operation can be realized by using the effective workable width of the model BEST-V s. Two lanes of fabric shall be treated as one lane of wide fabric. The width of each lane of fabric must be the same.

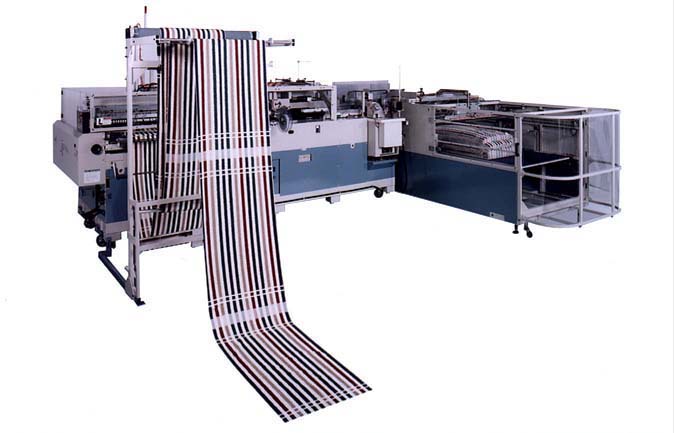

BEST-VII AC with BM-V-S (CROSS HEMMING MACHINE)
This model is equiped with the newly-developed automatic bobbin changer with automatic bobbin winder which maximize the productivity and save labor enormously.
Also with our newly-developed mechanism, the treatable towel sizes have been largely extended. This model can cover a wide range of 380-820mm towel width both for face towels & bath towls with adjustable hem width of 10-25mm.
BEST-W-U(WASH CLOTH MACHINE)
Fully automatic four sides hemming machine for handkerchiefs, wet towels, table napkins and washcloths. Cutting, label insertion, sewing and stacking can be carried out fully automatically.
BSD-TB-1200 (LENGTH HEMMING MACHINE)
Our newly developed mechanism makes possible a perfect three-folding of longitudinal side hems even for towels with decorative borders.
Hem width: 8mm for thick material (STANDARD)
@ 6mm for thin material(OPTION)

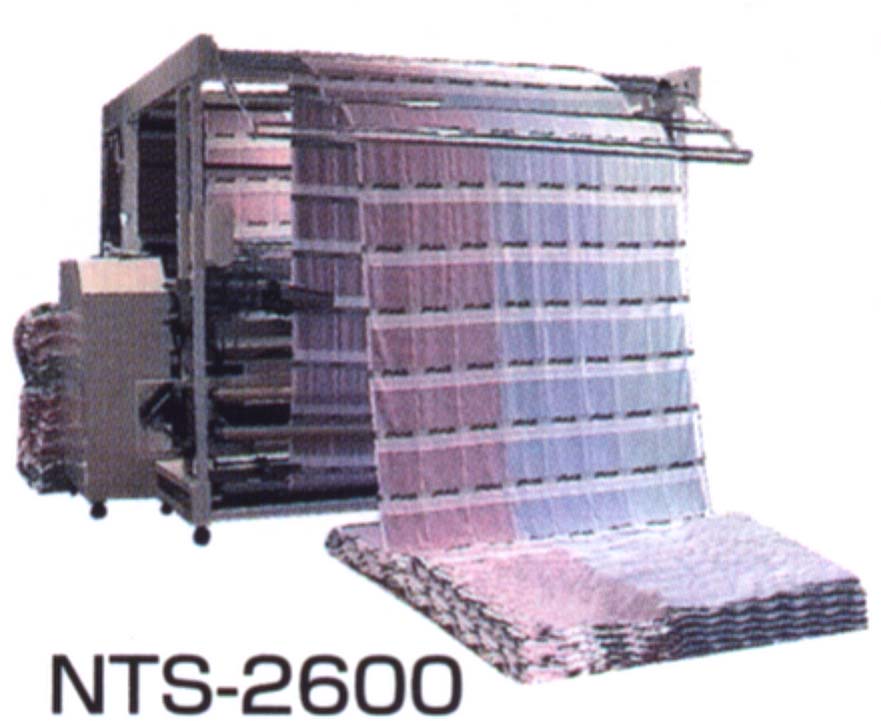

NTS-2600 (SLITTING MACHINE) aa
Our newly developed disc cutter floating system reduces considerably thread waste. The mechanism can follow precisely the cutting line without any optical sensor. Our new cutting mechanism can cut only the weft avoiding to the maximum cutting the warp.
Consequently the time for finishing can be reduced considrably. Furthermore the running speed is increased up to 30M/minute.
